[Product Process]:

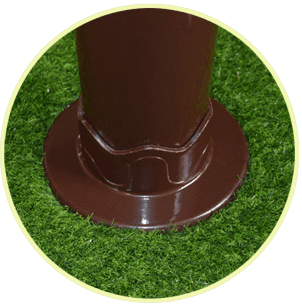

1. Use diameter 114mm galvanized pipe, wall thickness 2.2mm, (pipe quality with GB / T700-2006 standard requirements), After treatment by degreasing, phosphate, throwing sand, galvanized, the surface and then through the electrostatic powder, height temperature curing coating (plastic powder using Akzo Nobel outdoor polyester powder). smooth surface, Anti-UV, colorful, no fall off, and corrosion resistance. German imports paint line of computer-controlled electrostatic powder coating equipment, can ensure 10 years without fading.

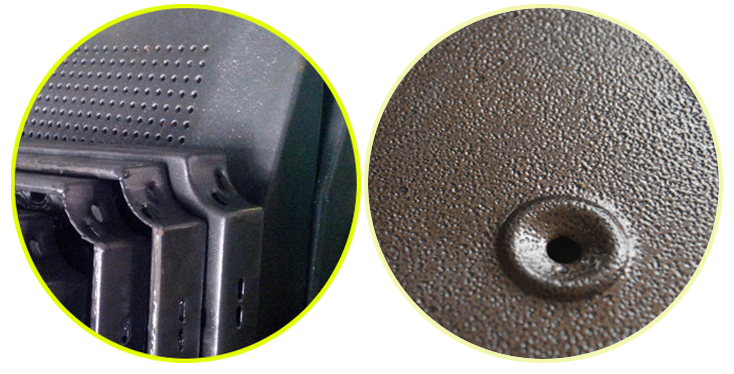

2. platform with thickness 2.2mm cold-rolled punching forming steel plate , punching diameter 6mm (Up to EU standards EN1176) , and TIG welding using CO2 gas shielded arc welding (Up to GB / T8810-1995 requirements), the platform carrying ability (Up to EU standards EN1176). After the whole molding process by the professional and technical personnel degreasing, phosphating, throwing sand, the surface coating DuPont outdoor polyester powder, high temperature curing. The surface smooth, anti-UV, colorful, no fall off, corrosion ;  computer-controlled spraying equipment electrostatic powder coating apparatus imports from South Korean, powder recovery using whirlwind and import filter, high efficiency, no pollution.

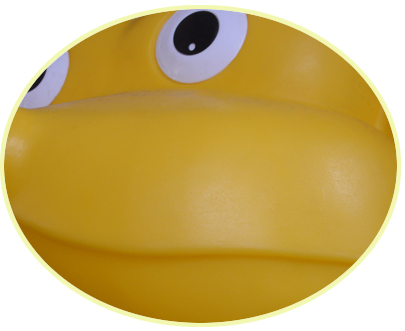

3. Plastic parts use imported Samsung LLDPE through rotational molding Rotational Compound, up to standards GB / T 4454-1996 requirements, plastic wall thickness more than 6mm, colorful, anti-ultraviolet (UV) capacity of 8, Up to AustraliaFood quality, antistatic ability, safety and environmental protection, good weather resistance, high strength.

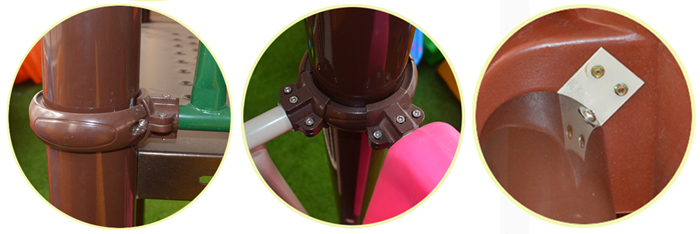

4. The iron pieces with a diameter 60mm, diameter 48mm, diameter 38mm, diameter 32mm, diameter 28mm, wall thickness of 2.0mm steel pipe (pipe quality standards are BS1387-1985 requirements, technical standards with BS1387-1985 requirements), argon arc welding After welding and CO2 gas shielded arc welding (up to standard GB / T8810-1995 requirements), the overall molding process by the professional and technical personnel degreasing, phosphating, throwing sand, the surface electrostatic powder coating line and then after high temperature curing (plastic powder using NetherlandsAkzo Nobel outdoor polyester powder). The surface is smooth, An-ti UV, colorful, no fall off, and corrosion resistance.German imports paint line of computer-controlled electrostatic powder coating equipment, can ensure not fade in 10 years!
